5. Global Seismograph Network - GSN:

DATES OF OPERATION:  	12 Oct 1990 to 16 Apr 1991.

SEISMOMETER TYPE AND ADC:
Streckeisen Model STS-1/VBB 3 component system for broadband, long period and
very long period channels & Teledyne Geotech Model GS-13 seismometers for
triggered short period channels.  IDA MK6 data acquisition system.

CALIBRATION EPOCHS:	1990, 285 - 1991, 106

DIGITAL FORMAT:
32 bit integer data words for all broadband (20 sps) and very long period
(0.1 sps) data and for synthesized long period (1 sps) data.  16 bit integer
data words for short period (200 sps) triggered data.

Click on any of the following items for further information.

• Channel Data

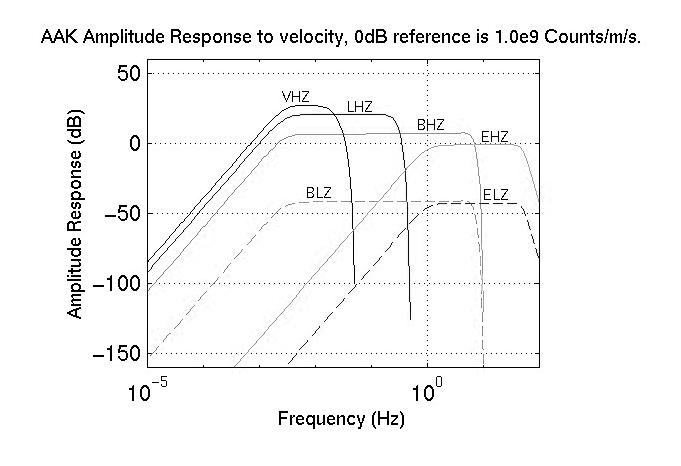

• Amplitude Response to Ground Velocity
• Seismic Noise Study graph information
  • Seismic Noise Level - Annual
  • Seismic Noise Level - Seasonal/Diurnal
