1. TERRAscope Seismograph Network: [TS]
	Hardware similar to GSN stations.

DATES OF OPERATION:  31 Mar 1993 to Present.

SEISMOMETER TYPE & ADC:
Streckeisen Model STS-2/VBB 3 component system.  Kinemetrics Model FBA-23 for all low gain
 channels.  ADC is Quanterra Model Q-680.

DIGITAL FORMAT:
24 bit integer data words for all components.  Range: +8,388,607 to -8,388,608 counts.

EVENT DETECTION ALGORITHIN:
The Murdock event detector (Murdock, 1991) is used for the short period (80 sps) data.

Click on any of the following items for further information.

• Channel Data
• Amplitude Response to Ground Motion

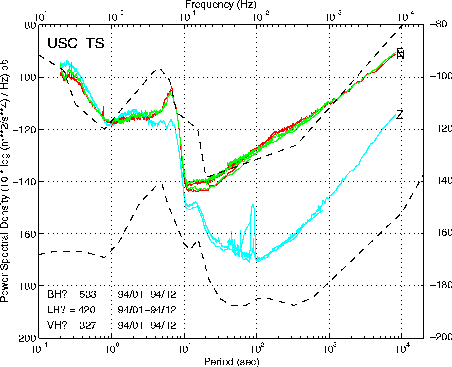

• Seismic Noise Study graph information
  • Seismic Noise Level - Annual
  • Seismic Noise Level - Seasonal/Diurnal

COMMENTS:
None.
