1. TERRAscope Seismograph Network:   [ TS ]

DATES OF OPERATION:  	07 May 1993 to Present

SEISMOMETER TYPE and ADC:
Streckeisen Model STS-2/VBB 3 component system.  Kinemetrics Model FBA-23
for all low-gain channels.  ADC is Quanterra Model Q-680.

DIGITAL FORMAT:
24 bit integer data words for all components. including strong motion channels.
Range: +8,388,607 to -8,388,608 counts.

EVENT DETECTOR ALGORITHM:
The Murdock event detector (Murdock, 1991) is used for the short period (80 sps) data.

Click on any of the following items for further information.

• Channel Data
• Amplitude Response to Ground Velocity
• Seismic Noise Study graph information

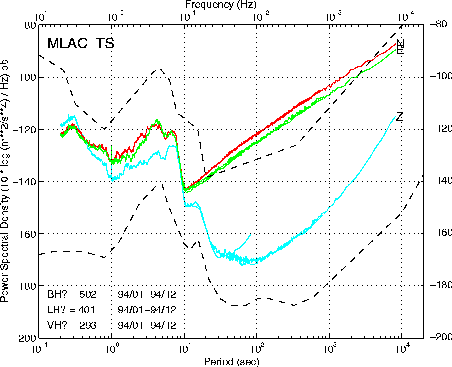

  • Seismic Noise Level - Annual
  • Seismic Noise Level - Seasonal/Diurnal

COMMENTS:
None.
