2. Global Seismograph Network - GSN:

DATES OF OPERATION:	15 Dec 1992 to 30 Jul 1999.

SEISMOMETER TYPE AND DATA ACQUISITION SYSTEM:
Streckeisen Model STS-1/VBB 3 component system for broadband, long period
and very long period channels and Teledyne Geotech Model GS-13 seismometers
for triggered short period channels.  IDA MK6 data acquisition system.

CALIBRATION EPOCHS:	1992, 350 - 1999, 211

DIGITAL FORMAT:
32 bit integer words for all broadband (20 sps) and very long period (0.1 sps)
and for synthesized long period (1 sps) data.  16 bit integer data words for
short period (200 sps) triggered data.

Click on any of the following items for further information.

• Channel Data

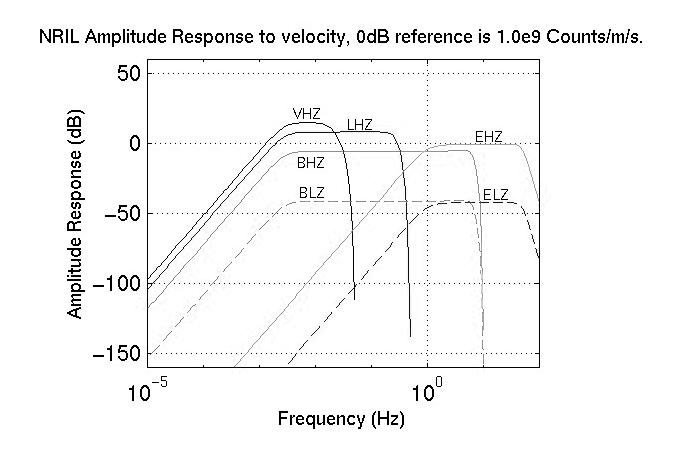

• Amplitude Response to Ground Velocity
• Seismic Noise Study graph information
  • Seismic Noise Level - Annual
  • Seismic Noise Level - Seasonal/Diurnal
