1. IRIS China Digital Seismograph Network - ICDSN [IC]

DATES OF OPERATION:      23 Sep 1995 to Present.

SEISMOMETER TYPE:
Strekeisen STS-2 very broad band seismometer, Streckeisen STS-1 very broad
band seismometer, Kinemetrics FBA-23 low-gain accelerometer.  ADC is
Quanterra model QX80.

DIGITAL FORMAT:
16 bit gain-ranged data words for all components.
Range: +1,048,576 to -1,048,448 counts.

EVENT DETECTOR ALGORITHM:
The Murdock event detector (Murdock, 1983) is used for all short period and
mid period data.

Click on any of the following items for further information.

• Channel Data
• Amplitude Response to Ground Motion

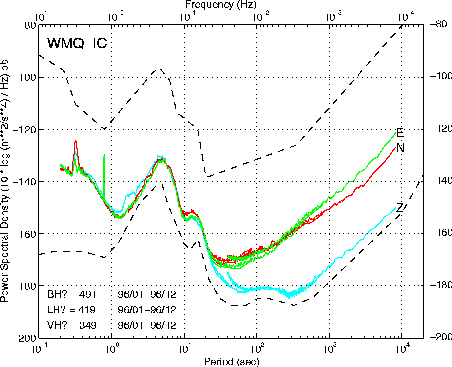

• Seismic Noise Study graph information
  • Seismic Noise Level - Annual
  • Seismic Noise Level - Seasonal/Diurnal

COMMENTS:
A description of the China Digital Seismograph Network (CDSN) is available in a
joint report by the State Seismological Bureau and the Albuquerque Seismological
Laboratory (ASL) available through the ASL.
